DAGs & Compilation

This page explains the two halves of how Cursus turns a topology you draw into a runnable SageMaker pipeline:

  1. The DAG model — a lightweight directed acyclic graph (PipelineDAG) whose nodes are step names and whose edges are dependencies.

  2. The compilation pipeline — PipelineDAGCompiler and the DynamicPipelineTemplate / PipelineAssembler machinery that resolve each node to a config and a builder, wire the steps together, and emit a sagemaker.workflow.pipeline.Pipeline.

The design goal is invariance: the same DAG plus the same config file always compiles to the same pipeline structure, regardless of who calls it or how. You never hand-write a SageMaker step; you declare what steps exist and how they depend on each other, and the compiler figures out the rest.

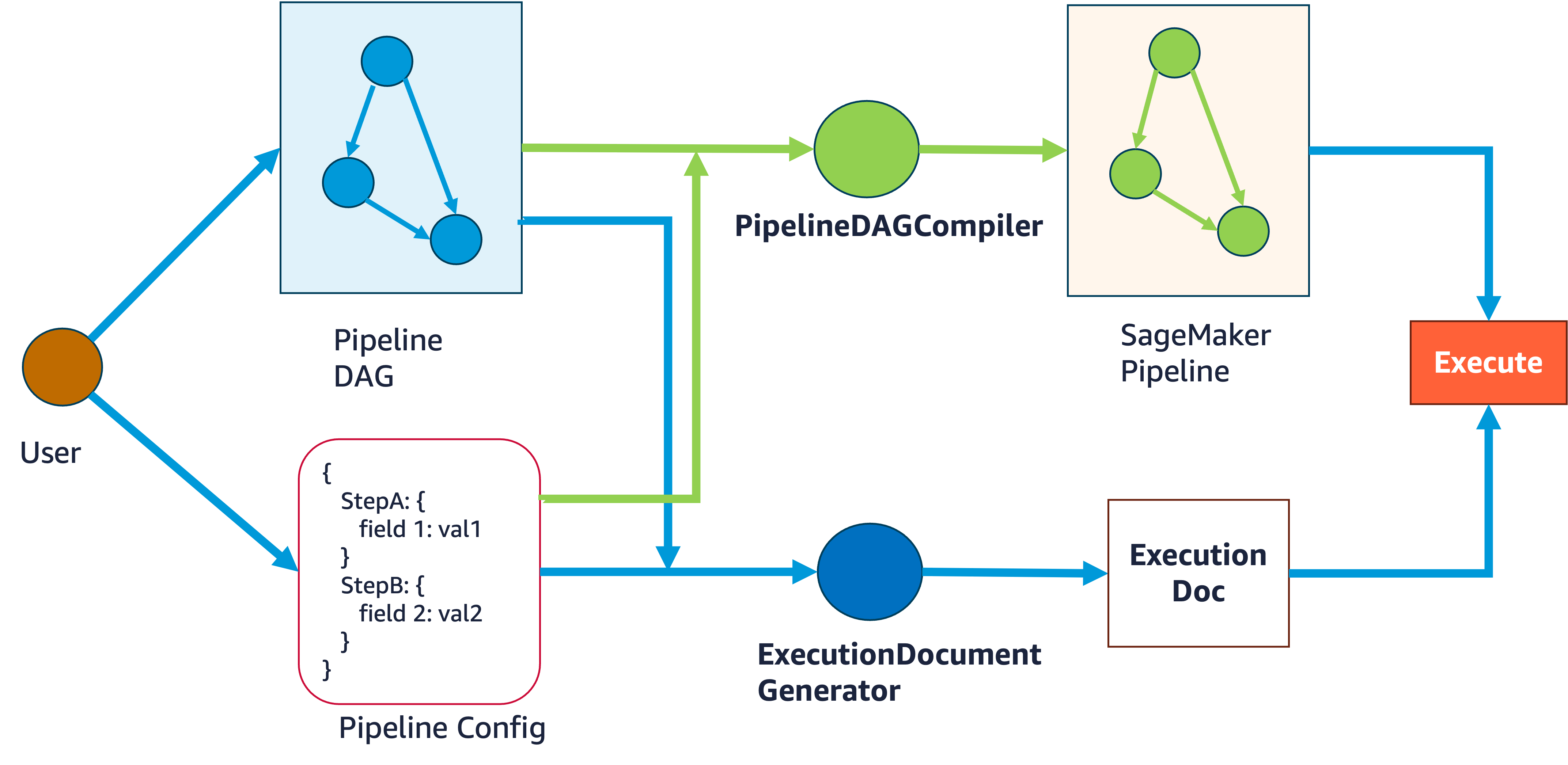

Compilation flow — the user supplies a Pipeline DAG and a Pipeline Config; PipelineDAGCompiler turns them into a SageMaker Pipeline, while the ExecutionDocument Generator produces an execution document; both feed execution.

Compilation flow. You supply a Pipeline DAG and a Pipeline Config; PipelineDAGCompiler compiles them into a SageMaker Pipeline, while the ExecutionDocument generator turns the same config into an execution document — both of which feed the final Execute step.

Related reading: Dependency resolution, Step interfaces, Config system, Registry & discovery, and the CLI reference.

The DAG model

PipelineDAG

PipelineDAG (in cursus.api.dag.base_dag) is deliberately minimal. A node is just a step name (a string); an edge is a (from_step, to_step) tuple meaning “to_step depends on from_step”. There is no config, no builder, and no SageMaker object attached at this stage — the DAG is pure topology.

from cursus.api.dag import PipelineDAG

dag = PipelineDAG()
dag.add_node("CradleDataLoading_training")
dag.add_node("TabularPreprocessing_training")
dag.add_node("XGBoostTraining")

dag.add_edge("CradleDataLoading_training", "TabularPreprocessing_training")
dag.add_edge("TabularPreprocessing_training", "XGBoostTraining")

You can also construct a DAG in one shot:

dag = PipelineDAG(
    nodes=["A", "B", "C"],
    edges=[("A", "B"), ("B", "C")],
)

Internally the DAG maintains:

Attribute

Meaning

nodes

ordered list of step names

edges

list of (src, dst) tuples

adj_list

forward adjacency (node → successors)

reverse_adj

reverse adjacency (node → predecessors)

_declared_nodes

the set of nodes you explicitly declared (see below)

Useful methods:

  • get_dependencies(node) — immediate parents (predecessors) of a node.

  • topological_sort() — nodes in a valid execution order; raises ValueError("DAG has cycles or disconnected nodes") if no ordering exists.

Declared vs. auto-created nodes

add_edge is lenient by default: if you reference an endpoint that was never declared, it auto-creates that node so construction never raises an opaque KeyError. Convenient — but a single typo silently spawns a phantom, unconfigured node and orphans the real one. For example:

dag.add_node("TabularPreprocessing_training")
dag.add_edge("CradleDataLoading_training", "TabularPreprocessing_traning")  # typo!

The typo ..._traning becomes a brand-new node with no config behind it. To catch this, Cursus tracks which nodes were explicitly declared (passed in nodes= or added via add_node) separately from those auto-created by add_edge.

validate_node_declarations()

Call this to list every edge endpoint that was never explicitly declared. An empty list means every endpoint is accounted for; any member is a likely typo or a forgotten add_node. It is non-fatal — it only reports.

undeclared = dag.validate_node_declarations()
if undeclared:
    print(f"Suspicious (undeclared) edge endpoints: {undeclared}")

Strict mode

Pass strict=True to turn the same condition into an immediate ValueError: add_edge (and the constructor) will refuse any endpoint that was not declared first. Use this when you want typos to fail loudly at graph-build time rather than surfacing later during compilation.

dag = PipelineDAG(strict=True)
dag.add_node("A")
dag.add_edge("A", "B")   # ValueError: endpoint 'B' was never declared via add_node

In strict mode you must add_node every node before wiring edges. In lenient mode (the default), rely on validate_node_declarations() — or the serializer’s dangling-edge check — to surface problems.

Serialization

PipelineDAG round-trips to/from JSON via cursus.api.dag:

from cursus.api.dag import export_dag_to_json, import_dag_from_json

export_dag_to_json(dag, "my_dag.json")
dag2 = import_dag_from_json("my_dag.json")

The writer (PipelineDAGWriter) validates the DAG before writing (including a dangling-edge check), and the reader (PipelineDAGReader) validates on load. Every compiler entry point accepts either a live PipelineDAG or a path to one of these JSON files.

A note on EnhancedPipelineDAG

Older versions exposed an EnhancedPipelineDAG name in the top-level cursus package, but there was never a concrete implementation, so it has been removed from the public surface. Use PipelineDAG for all work; the intelligent, spec-based enhancement it hints at is provided at compile time by the dependency resolver (see Dependency resolution), not by a separate DAG class.

What “compile” produces

Compilation takes (DAG, config file) and produces a sagemaker.workflow.pipeline.Pipeline — the object you can inspect, serialize with pipeline.definition(), deploy with pipeline.upsert(), or run with pipeline.start(). Cursus does not wrap or replace the SageMaker SDK; it emits a native Pipeline whose steps, dependencies, inputs, and outputs have been filled in for you.

The config file is a JSON document holding one configuration object per step (plus optional metadata). Each DAG node is matched to a config, each config is matched to a step builder, and each builder knows how to produce the concrete SageMaker step (processing, training, etc.). See Config system and Step interfaces for those layers.

The invariance guarantee

The compiler is deterministic: the same DAG and the same config file always yield the same pipeline structure — the same steps, the same dependency edges, and the same input/output wiring. Nothing about who calls compile() or from where changes the result. This is what makes a serialized DAG + config a reproducible description of a pipeline, and it is why the CLI, the Python API, and the MCP tools all funnel through the same compiler.

The compilation pipeline

High-level flow

PipelineDAG ─┐
             ├─► PipelineDAGCompiler.compile() ─► DynamicPipelineTemplate
config.json ─┘                                          │
                                                        ▼
                                          template.generate_pipeline()
                                                        │
                                                        ▼
                                               PipelineAssembler
                                                        │
                                                        ▼
                                        sagemaker.workflow.pipeline.Pipeline

Three cooperating layers:

Layer

Class / module

Responsibility

Compiler

PipelineDAGCompiler (core.compiler.dag_compiler)

Public API; validation, reporting, template creation

Template

DynamicPipelineTemplate (core.compiler.dynamic_template)

Resolve nodes → configs → builders; drive generation

Assembler

PipelineAssembler (core.assembler.pipeline_assembler)

Instantiate steps, wire dependencies, emit the Pipeline

PipelineDAGCompiler

PipelineDAGCompiler is the main entry point when you want control over validation, previews, and reporting. Construct it once with a config file and (optionally) a SageMaker session and role:

from cursus.core.compiler import PipelineDAGCompiler

compiler = PipelineDAGCompiler(
    config_path="configs/my_pipeline.json",
    sagemaker_session=session,
    role="arn:aws:iam::123456789012:role/SageMakerRole",
)

The constructor also accepts a project_root / anchor_file (the “caller hook” for resolving step source directories) and workspace_dirs for external step packs. See Path resolution and Step packs.

Key methods:

validate_dag_compatibility(dag) -> ValidationResult

Checks that every DAG node has a resolvable config and a resolvable builder, before you try to build anything. It builds a throwaway template, resolves the config map and builder map, and runs the ValidationEngine. The returned ValidationResult (a Pydantic model in core.compiler.validation) carries:

  • is_valid

  • missing_configs — nodes with no matching config

  • unresolvable_builders — configs with no matching builder

  • config_errors — per-node errors, including config-node mismatches (a node name that encodes one step type bound to a config for a different step type) and interface-load failures

  • dependency_issues, warnings

result = compiler.validate_dag_compatibility(dag)
print(result.summary())          # "✅ Validation passed" / "❌ Validation failed: ..."
if not result.is_valid:
    print(result.detailed_report())

preview_resolution(dag) -> ResolutionPreview

Shows how each node will resolve — the node → config-type map, config → builder-type map, and a confidence score per node. Low-confidence resolutions (< 0.8) generate recommendations (e.g. rename a node to match its config).

preview = compiler.preview_resolution(dag)
print(preview.display())

create_template(dag, **kwargs) -> DynamicPipelineTemplate

Builds the DynamicPipelineTemplate without generating the pipeline, so you can inspect or tweak it. All the higher-level methods delegate to this. By default it enables validation (skip_validation=False).

compile(dag, pipeline_name=None) -> Pipeline

The one-call path from DAG to Pipeline. It creates the template, calls template.generate_pipeline(), and names the result (using your override, or a rule-based name derived from pipeline_name / pipeline_version on the configs via generate_pipeline_name). For performance it defaults to skip_validation=True here — validation is expected to be run separately via validate_dag_compatibility or compile_with_report — but config resolution is always strict, so a bad config map is still a hard error, never a silent partial pipeline.

pipeline = compiler.compile(dag, pipeline_name="my-training-pipeline")
pipeline.upsert()          # deploy to SageMaker

compile_with_report(dag, pipeline_name=None) -> (Pipeline, ConversionReport)

Compiles and returns a detailed report. This is the method to use when you want a paper trail of how nodes resolved.

pipeline, report = compiler.compile_with_report(dag)
print(report.summary())
print(report.detailed_report())

The ConversionReport (in core.compiler.validation) contains:

Field

Meaning

pipeline_name

name of the generated pipeline

steps

list of node/step names

resolution_details

per-node config_type, builder_type, confidence

avg_confidence

mean confidence across all nodes

warnings

e.g. low-confidence or ambiguous resolutions

metadata

node/edge counts, config path, step-catalog stats

Note: the report class is named ConversionReport (a “DAG → pipeline conversion” report); there is no separate CompilationReport type. Single-node compilation exposes its own lightweight ExecutionPreview and ValidationResult instead (see below).

Other helpers

  • get_supported_step_types() — step types the catalog can build.

  • validate_config_file() — sanity-check that the config file loads.

  • get_last_template() — the template from the most recent compile(), handy for execution-document generation.

  • analyze_pipeline_structure() — print the dependency graph and input assignments (delegates to the last template, which in turn delegates to its PipelineAssembler; call after compile() or compile_with_report()).

One-call convenience function

If you don’t need the compiler object, compile_dag_to_pipeline wraps it:

from cursus.core.compiler import compile_dag_to_pipeline

pipeline = compile_dag_to_pipeline(
    dag=dag,                                   # or dag_path="my_dag.json"
    config_path="configs/my_pipeline.json",
    sagemaker_session=session,
    role="arn:aws:iam::123456789012:role/SageMakerRole",
)

The top-level cursus.compile_dag is an alias for this function.

DynamicPipelineTemplate

DynamicPipelineTemplate is the workhorse that adapts any PipelineDAG to the abstract PipelineTemplateBase contract without a hand-written template class. It implements the base template’s abstract methods dynamically:

  • _detect_config_classes() — inspects the config JSON and auto-loads exactly the config classes it needs (detect_config_classes_from_json).

  • _create_pipeline_dag() — returns the DAG it was given.

  • _create_config_map() — uses the StepConfigResolver to map every DAG node to a config instance. The resolver applies a stack of matching strategies (direct name match, then job_type, semantic, and pattern matching) and warns below a confidence_threshold of 0.7. This step is strict: if any node cannot be resolved, it raises ConfigurationError rather than emitting a structurally incomplete pipeline. A completeness assertion double-checks that every node got a config.

  • _create_step_builder_map() — uses the StepCatalog to map each config to its step builder class, raising RegistryError if any builder is missing.

  • _validate_configuration() — runs the ValidationEngine (skipped when skip_validation=True).

It also exposes conveniences like get_execution_order() (topological sort), get_step_dependencies(), and get_resolution_preview().

DynamicPipelineTemplate extends PipelineTemplateBase (core.assembler.pipeline_template_base), which handles the common lifecycle: loading configs, initializing the registry manager and dependency resolver, and — in generate_pipeline() — creating a PipelineAssembler and delegating the actual build to it.

PipelineAssembler

PipelineAssembler (core.assembler.pipeline_assembler) is where the DAG finally becomes SageMaker steps. Given the DAG and the resolved config_map, it:

  1. Validates inputs — every node has a config, every config has a builder (looked up through the StepCatalog), and every edge connects existing nodes.

  2. Initializes step builders — one builder instance per node, wired with the shared registry manager and dependency resolver, and given the pipeline execution S3 prefix.

  3. Propagates messages (_propagate_messages) — for each edge, the dependency resolver scores each of the source step’s outputs against each of the destination step’s dependencies (via spec compatibility), and records the best match above the threshold. This is the specification-based wiring that auto-connects steps; missing required dependencies are flagged.

  4. Instantiates steps in topological order (_instantiate_step) — builds each step’s inputs from the matched messages as PropertyReferences (real runtime SageMaker property references, never fabricated placeholder URIs — a wiring failure raises instead), generates its outputs from the spec, and calls the builder’s create_step.

  5. Creates the Pipeline — collects the instantiated steps in build order and returns a sagemaker.workflow.pipeline.Pipeline with the configured parameters and session.

The analyze_pipeline_structure() method prints the resulting dependency graph and per-input assignments (source step/output, compatibility score, property path, container destination) — a good sanity check after compiling.

For the scoring details behind message propagation, see Dependency resolution.

Single-node compilation

Sometimes a long pipeline fails at one step and you don’t want to re-run the expensive upstream steps. SingleNodeCompiler (core.compiler.single_node_compiler) compiles a pipeline containing just one node, with its inputs supplied manually as S3 URIs — bypassing normal dependency resolution.

from cursus.core.compiler import compile_single_node_to_pipeline

pipeline = compile_single_node_to_pipeline(
    dag=dag,
    config_path="configs/my_pipeline.json",
    target_node="XGBoostTraining",
    manual_inputs={
        "input_path": "s3://my-bucket/run-123/preprocess/output/",
    },
    sagemaker_session=session,
    role="arn:aws:iam::123456789012:role/SageMakerRole",
)
pipeline.start()

Under the hood the compiler (or the equivalent SingleNodeCompiler class):

  • validate_node_and_inputs(dag, target_node, manual_inputs) — checks the node exists in the DAG and that each manual input is a well-formed s3:// URI, returning a ValidationResult dataclass with a detailed_report().

  • preview_execution(...) — returns an ExecutionPreview describing the step and its input mappings.

  • compile(...) — auto-loads just the target node’s config, builds an isolated single-node PipelineDAG, and calls the assembler’s generate_single_node_pipeline, which instantiates the one step with the manual inputs (via _instantiate_step_with_manual_inputs) and returns a minimal Pipeline.

Note this module defines its own ValidationResult and ExecutionPreview dataclasses, distinct from the compiler’s Pydantic ValidationResult / ResolutionPreview. In cursus.core.compiler they are re-exported as SingleNodeValidationResult and ExecutionPreview to avoid the name clash.

Compiling from the command line

The cursus compile command compiles a serialized DAG plus a config file — the same code path as the Python API:

# Basic compilation (console output only)
cursus compile -d dag.json -c config.json

# Save the pipeline definition to a file
cursus compile -d dag.json -c config.json -o pipeline_definition.json

# Deploy to SageMaker (upsert), then run
cursus compile -d dag.json -c config.json --upsert --start

# Validate compatibility only — don't build
cursus compile -d dag.json -c config.json --validate-only

# Show the detailed conversion report
cursus compile -d dag.json -c config.json --show-report

Option

Purpose

-d, --dag-file

serialized DAG JSON (required)

-c, --config-file

configuration JSON (required)

-n, --pipeline-name

override the generated pipeline name

--role

IAM role ARN for execution

-o, --output

write the pipeline definition JSON to a file

--upsert

create/update the pipeline in SageMaker

--start

start execution after upsert (requires --upsert)

--validate-only

run compatibility validation and stop

--show-report

print the detailed compilation report

--format

text (default) or json console output

Putting it together

A typical end-to-end flow:

from cursus.api.dag import PipelineDAG
from cursus.core.compiler import PipelineDAGCompiler

# 1. Describe the topology.
dag = PipelineDAG(strict=True)
for node in ["CradleDataLoading_training",
             "TabularPreprocessing_training",
             "XGBoostTraining"]:
    dag.add_node(node)
dag.add_edge("CradleDataLoading_training", "TabularPreprocessing_training")
dag.add_edge("TabularPreprocessing_training", "XGBoostTraining")

# 2. Create a compiler bound to your configs.
compiler = PipelineDAGCompiler(
    config_path="configs/xgb_pipeline.json",
    sagemaker_session=session,
    role="arn:aws:iam::123456789012:role/SageMakerRole",
)

# 3. Validate before you build.
result = compiler.validate_dag_compatibility(dag)
assert result.is_valid, result.detailed_report()

# 4. Compile to a SageMaker Pipeline, with a report.
pipeline, report = compiler.compile_with_report(dag)
print(report.summary())

# 5. Deploy and/or run.
pipeline.upsert()
pipeline.start()

The result of step 4 is a plain sagemaker.workflow.pipeline.Pipeline. Everything Cursus-specific happened during compilation; from here on you are back in the standard SageMaker SDK.
